A big part of building custom vacuum tube amplifiers is layout. Even when the schematics are finalized and parts are ordered (and even delivered) the preparatory work is not over. With this phase comes the arranging and rearranging of transformers, tube sockets, potentiometers, switches, jacks, terminal strips, and all the other miscellaneous parts that make up the final amplifier. And this is where some simple quality tools can make all the difference.
The first tool I find indispensable for performing the final layout and marking up metal prior to cutting is a good quality ruler. Here is the one I use.

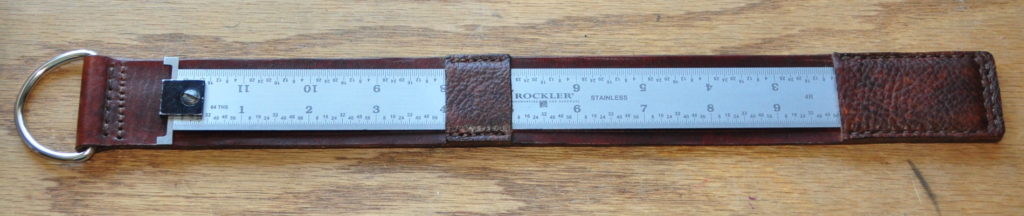

It is stainless steel, 12" long and 1" wide, with gradation ranges of 1/8" and 1/16" on one side and 1/32" and 1/64" on the other. This is a nice ruler with fine but deeply etched markings. This particular one also has a “hook” end which is valuable when working with metal sheet. Most of the rearranging for me takes place on the computer, but when it comes to checking part dimensions and putting the actual cutting and tooling marks on metal plates, this ruler is indispensable. By the way, this ruler did NOT come with the nice leather sheath shown above. This was made for me by a good friend who does leather work as a hobby when the cheap plastic sleeve it came with finally came apart.
A couple of more tools which help out are some simple gauges. Here they are.

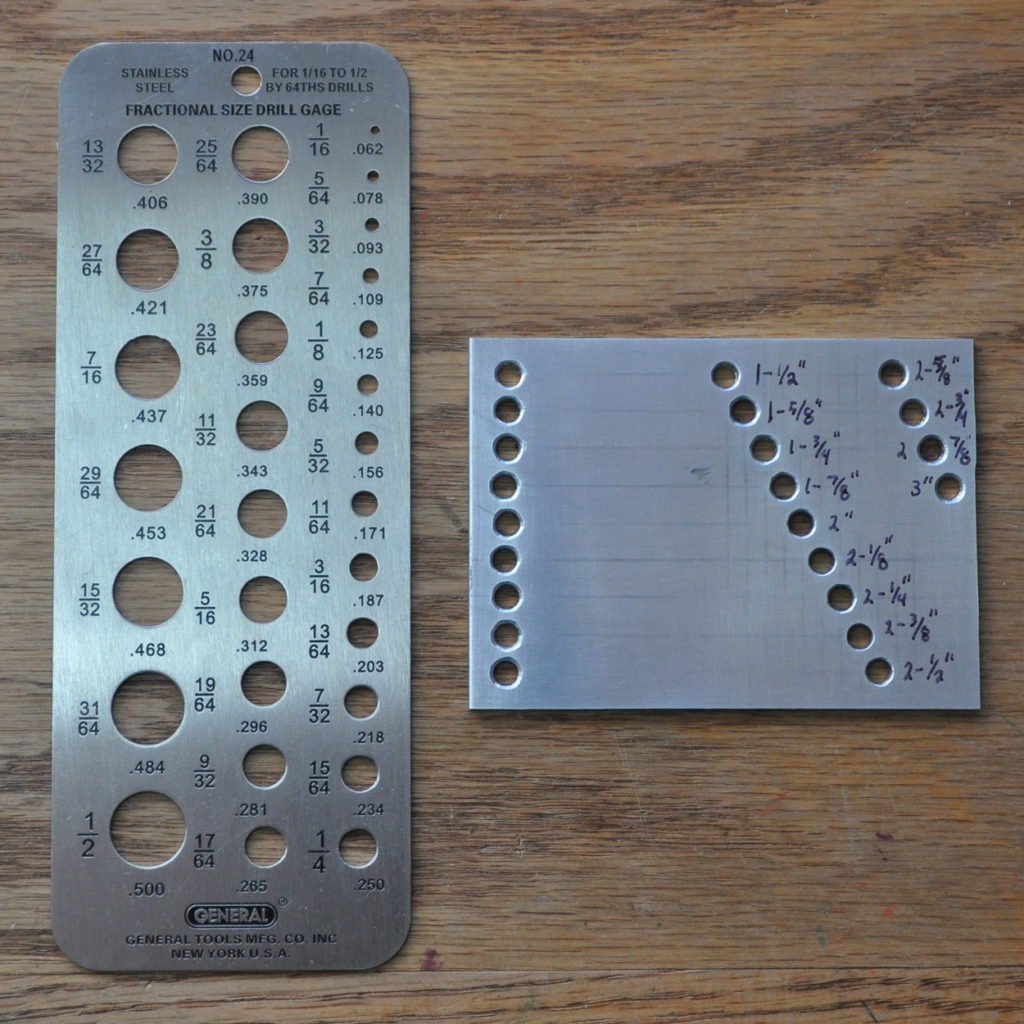

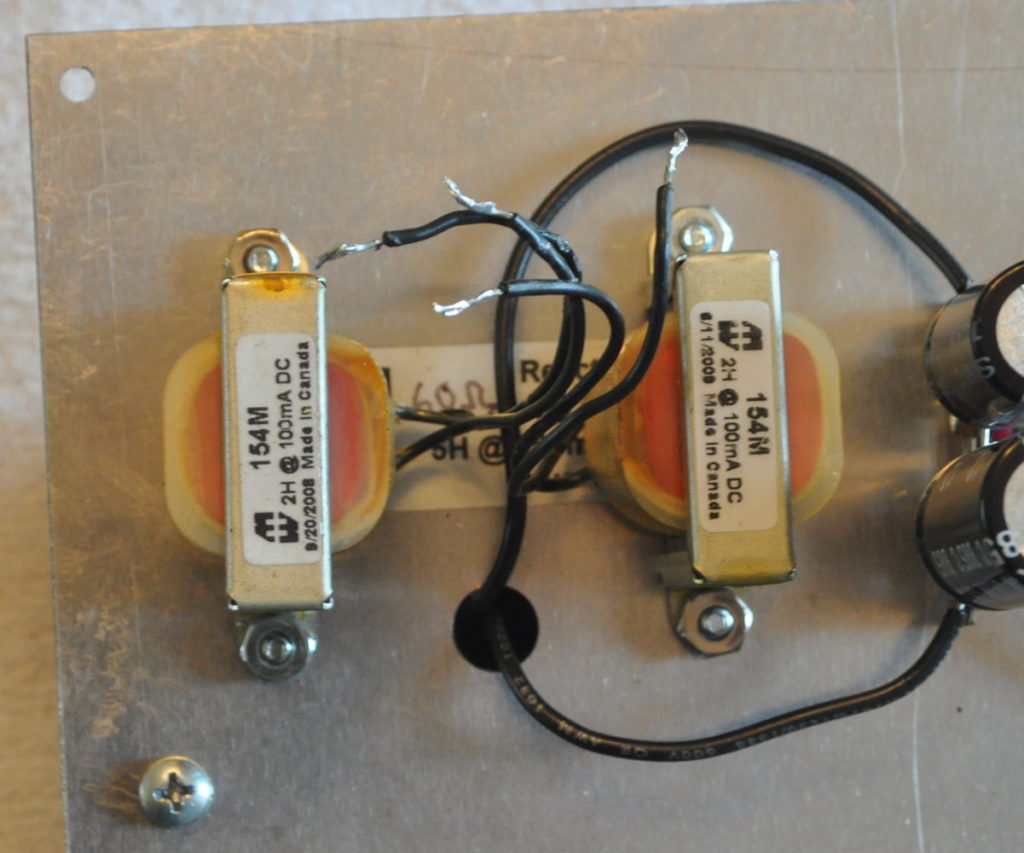

The gauge on the right requires a little explanation. Anyone that follows my amp builds knows that I like to take advantage of transformer and tube socket mounting screws for mounting other components underneath the top plates of my amps. Here is a good example from the 6CY7 amp where I mounted a couple of Hammond 154M 2H chokes on the mounting screws for a Hammond 193H enclosed choke mounted on the top of the amp.
I also sometimes mount terminal strips between these same screws as on the recent 6V6 Marblewood amp power transformer. The key to doing this is to realize that the mounting hole separation for most terminal strips and open frame inductors is fixed whereas the mounting feet on most end-bell transformers and chokes have slots that will accommodate a variable mounting screw distance from front to back. For example, the Edcor GXSE10-8-5K output transformer can use a back to front screw separation anywhere from about 1-5/8" to about 2". Which brings me to the homemade gauge in the photo above.
This gauge allows me to quickly check the mounting hole separation of small chokes and terminal strips, and then check those dimensions against end-bell type transformers and chokes I have on hand. Very often it is possible to find a hole separation that works for both. And if I am still uncertain, I can even temporarily mount both on either side of the gauge plate with some 6-32 screws to ensure the arrangement will work out.
So what type of gauges and tools to other people use when laying out their amps? I’m interested in finding out.
